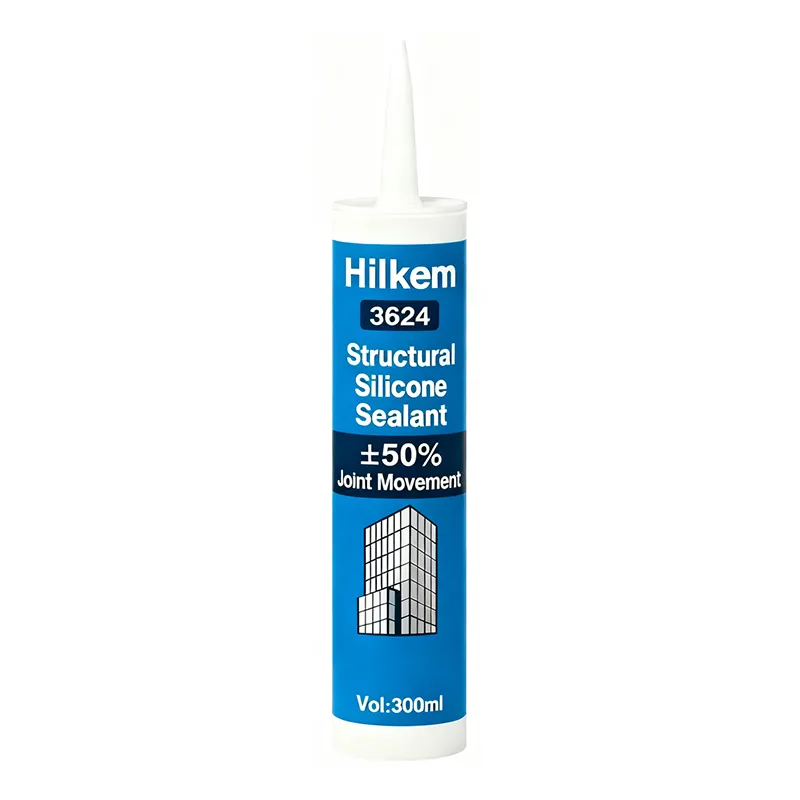

HILKEM 3624 silicone structural sealant is a one-component, high-performance, neutral curing adhesive. It has excellent bonding ability to the surfaces of most materials such as aluminum alloy, stainless steel, microcrystalline glass and ABS+PC. It is weather-resistant, excellent resistant to high and low temperatures, and it has a fast curing speed.
Characteristics
Single-component, easy to use:
It has good extrudability and thixotropy within the temperature range of 4℃ to 40℃ , and it can be directly applied by extruding with the glue gun.
Neutral curing , widely applied:
It has no corrosive effect on building materials such as metals and coated glass.
Excellent displacement capacity:
The displacement capacity reaches ±50%. This product can maintain its performance unchanged during the normal expansion, contraction and shear deformation of the subway platform screen door, and it plays an effective sealing role.
Excellent weather resistance:
Aging resistant, UV resistant, ozone resistant, water resistant.
Excellent resistance to high and low temperatures:
After curing, it will not become brittle, harden or crack at a low temperature of -40℃ , nor will it soften or degrade at a high temperature of 150℃ , it always maintaining good
elasticity.
Excellent adhesion
After curing, it forms a strong bond with most building materials without the need for primer.
Good compatibility:
It has good compatibility with other neutral silicone sealants.
Technical Specifications
| Item | Technical Standard | |
| Drooping degree | Vertical / mm | ≤3 |
| Horizontal | No deformation | |
| Extrudability / ml/min | ≥80 | |
| Surface drying time / h | ≤3 | |
| Displacement capacity / % | ±50 | |
| Elastic recovery rate / % | ≥80 | |
| Tensile modulus / MPa | 23℃ | 0.4 |
| -20℃ | 0.6 | |
| Fixed elongation adhesive property | No damage | |
| Adhesion after hot pressing and cold drawing | No damage | |
| Fixed elongation adhesion after hot pressing and cold drawing | No damage | |
| Thermal aging | Thermal weight loss / % | ≤ 10 |
| Cracking | No | |
| Efflorescence | No | |
Application
Elastic weather-resistant sealing for insulating glass and glass curtain walls;
Elastic weather-resistant sealing for subway platform screen doors;
Calculation of glue application length:
| Thickness/mm | Width/mm | ||||||
| 6 | 9 | 12 | 15 | 18 | 21 | 24 | |
| 6 | 16.4 | 10.9 | 8.2 | 6.6 | 5.5 | 4.7 | 4.1 |
| 9 | 10.9 | 7.3 | 5.5 | 4.4 | 3.6 | 3.1 | 2.7 |
| 12 | 8.2 | 5.5 | 4.1 | 3.3 | 2.7 | 2.3 | 2.0 |
*Note: The actual amount of sealant used may vary due to the interface design, the installation position of the gasket material, the finishing technique, and the loss on the construction site
Packaging and Storage
Net content: 300ml cartridge or 590ml sausage.
Storage Please place it in a cool and dry place away from light, the storage temperature should be 5~25℃ , keep the package intact and well sealed.
Keep the package intact and well sealed; the shelf life of this product is 9 months from the date of production, after more than 9 months, it is recommended to evaluate the performance before use.
Safety
When you consider using any of our products, please check the latest Material Safety Data Sheet (MSDS) of the product before use to ensure your safety. You can contact your nearest sales representative and request the MSDS and other relevant safety
information for the product. Before using any of the products in this document, please obtain the relevant product safety information and take the necessary safety measures to ensure the safety of use.
